Product Information
FX90 BASE CONTROLLER & SD CARD with LICENSE FOR 100 FIELD DEVICES / 5000 POINTS and INITIAL PURCHASE 5 YEAR SOFTWARE MAINTENANCE FOR FX90 100 -199 FIELD DEV.

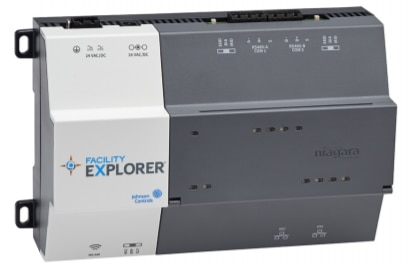

Johnson Controls is pleased to announce the release of the new Facility Explorer FX90 Supervisory Controller. The FX90 provides integrated control supervision and network management services for local networks of equipment controllers. It features scheduling, alarming, historical data collection and management, 3D system graphics, and more. The FX90 Supervisory Controller also supports the exclusive FX Appliance productivity tools to streamline and automate workflows and save time and money from bid to operation.
The new FX90 Supervisory Controller, successor to the FX80, features a modernized hardware platform with advanced features for enhanced performance, further extending supervisory control capability and scalability for current and future needs of building systems.
Features and Benefits:
• Faster Processor: Quad core 1.6 GHz iMX8M+CPU (formerly Single core 1 GHz TI AM3522)
• Increased memory and storage capacity (2 GB RAM memory, 8 GB onboard EMMC storage, 8 GB uSD)
• Supports the FX Appliance
• Ability to scale
• Same footprint, wiring connection locations and orientation as the FX80 and fully compatible with all existing expansion modules
• Stock option
Specifications
| Parameter | Specification |
|---|---|
| Enclosure | Plastic |
| Mounting | DIN rail |
| Dimensions (h x w d) | 179 mm x 110 mm x 61 mm (7.05 in. x 4.33 in. x 2.40 in.) |
| Power supply | 24 VAC rated at 24 VA minimum, or 24 VDC rated at 1 A (24 W) minimum |
| Processor | NXP iMX8M+ Quad Core CPU |
| RAM memory | 2GB LPDDR4 RAM |
| Flash memory | 8 GB onboard EMMC storage 8 GB micro-SD card: backup media |
| Environment | Operating temperature: -20°C to 60°C (-4ºF to 140ºF) Storage temperature: -40°C to 85°C (-40ºF to 185ºF) Humidity: 5% to 95%, non-condensing |
| Onboard | Two Ethernet ports: 10/100/1000 MB Two isolated RS-485 ports with selectable bias and termination USB type C |
| Plug-in options | Two isolated RS-485 ports with selectable bias and termination |
| Direct I/O | |
| Onboard | None |
| Optional | Up to 256 I/O when you use 16 remote I/O modules. The I/O module part numbers are IO-R-16 and IO-R-34 |
| Local (NDIO) | None |
| Remote I/O | Up to 256 I/O when you use 16 remote I/O modules. The I/O module part numbers are IO-R-16 and IO-R-34 |
| Compliance | United States UL Listed, File E207782, CCN PAZX, under UL 916, Energy Management Equipment FCC compliant to CFR 47, part 15, subpart C, Class B |
Workbench Requirements
| Parameter | Specification |
|---|---|
| Processor | Intel® Pentium® Core 2 Duo, 2 GHz |
| Operating system | 64-bit: Windows® 10 and 11 Pro or Enterprise, Windows Server 2016 or higher |
| Memory | 8 GB minimum |
| Hard disk | 2 GB minimum. 10 GB minimum for any supervisor |
| Network support | Ethernet 100 Mbit or 1 Gbit network interface card (NIC) with TCP/IP support |
