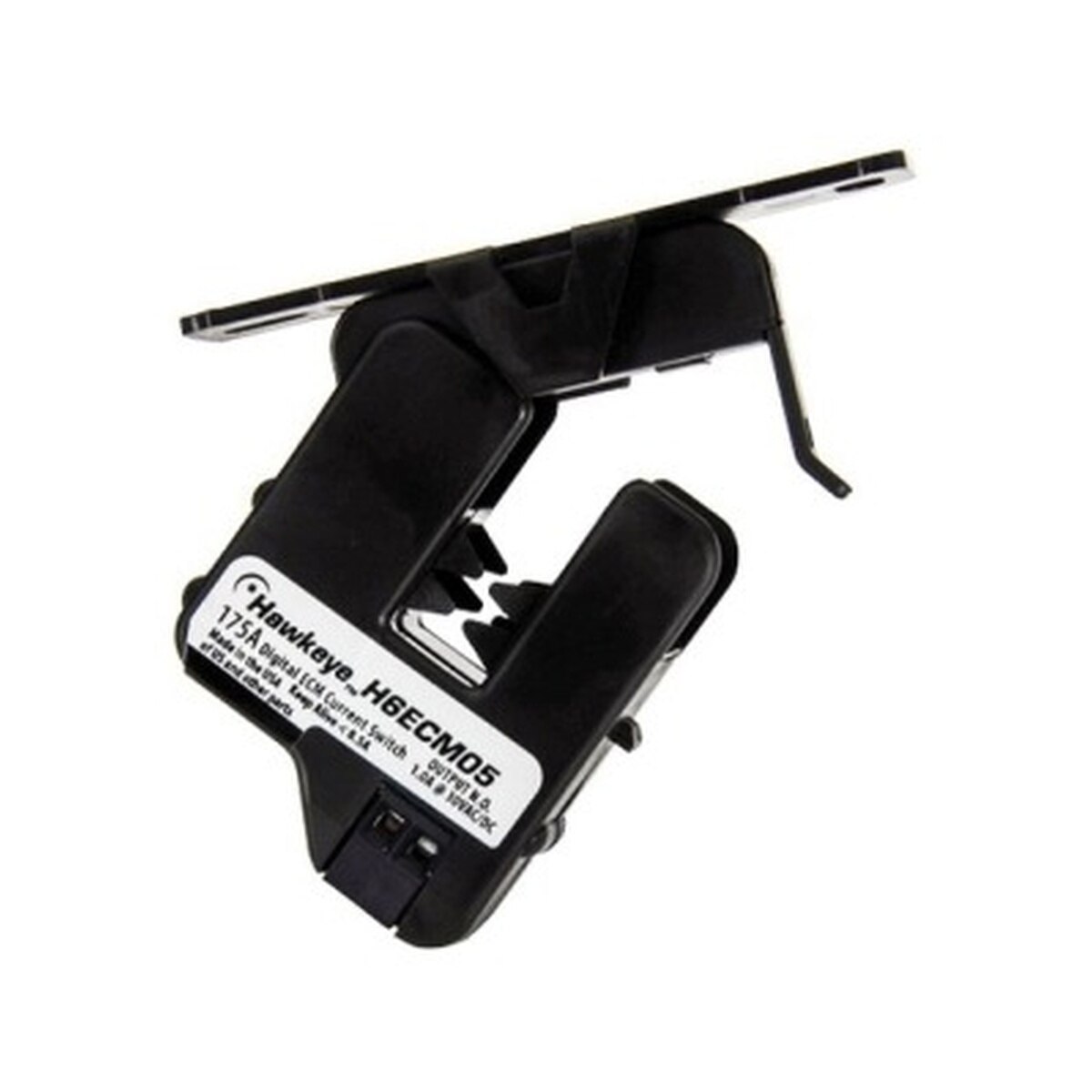

Veris H6ECM05 0.5-175A Current Switch
Trips at a fixed 0.5A; the ECM's off-state (keep-alive) current must be below 0.5A. Works on 60 Hz circuits only.
Key Features
- Status output: NO 1A @ 30 VAC/DC, not polarity sensitive
- Core: split-core, fits conductors up to 0.5 in.
Product Specifications
| Current Measurement Range | 0.5 to 175 A |
|---|---|
| Current Sensor type | Current Switch, AC, ECM |
| Electrical Wiring Size | 24 to 14 AWG (0.2 to 2.1 mm2) |
| Measurement Type | AC Current | ECM |
| Monitored Frequency Range | 60 Hz |
| Monitored Wire Size | 0.5" (13 mm) |
| Mounting | Split-Core |
| Operating Humidity | 10 to 90% RH, non-condensing |
| Operating Temperature | 5 to 140 deg F (-15 to 60 deg C) |
| Output Specifications | NO 1 A @ 30 VAC/DC, not polarity sensitive |
| Outputs | Switch output |
| Product Certification | UL |
| Setpoint | 0.5 A fixed (keep-alive current must be < 0.5 A) |
| Warranty | 5 years |
| Sensor Power | Induced from monitored conductor |
| Insulation Class | 600 VAC RMS |
| Hysteresis | 10% (typical) |
| Off State Resistance | > 1 Mohm (open) |
| On State Resistance | < 200 mohm (closed) |
| Terminal Block Torque | 3.5 to 4.4 in-lb (0.4 to 0.5 N-m) |
| Agency Approvals | UL 508 open device listing; CAT III, Pollution Degree 2; basic insulation |
