Veris VMD1B-F24A 24 VAC Coil SPDT Plug-in Relay

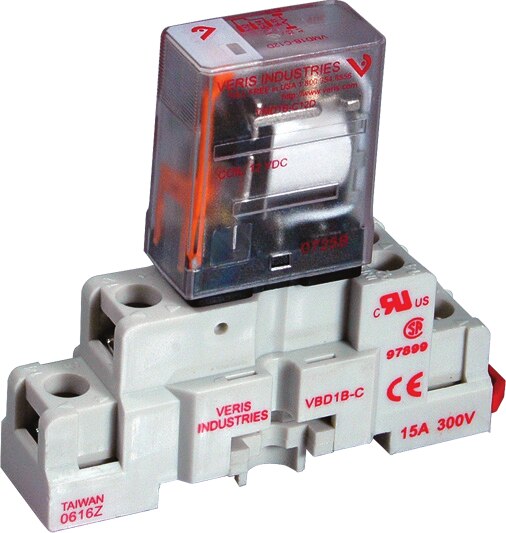

Needs a VBD1B socket, sold separately.
Locks the contacts in the powered position with its override lever; a push-to-test button operates it by hand.
Key Features
- Contacts: 15A @ 120 VAC, 28 VDC, 277 VAC
- Motor: 1/3 HP @ 120 VAC, 3/4 HP @ 277 VAC
- Pilot duty: B300
Product Specifications
| Current Rating/Range | 15A |
|---|---|
| Contact Form | SPDT |
| Coil Voltage | 24 VAC |
| Relay Contact Ratings | 15A @ 120 VAC, 28 VDC, 277 VAC |
| Motor Rating | 1/3 HP @ 120 VAC; 3/4 HP @ 277 VAC |
| Pilot Duty | B300 |
| Coil Power | 0.9 VA |
| Coil Operating Range | 85 - 110% of rated voltage |
| Coil Drop-out Voltage | 15% of rated voltage |
| Minimum Switching Current | 100 mA @ 5 VDC |
| Compatible Socket | VBD1B-C or VBD1B-F (15A, 300 V; sold separately) |
| Mounting | DIN | Wall (via socket) |
| Indicators | LED coil status; contact-position flag |
| Manual Operation | Push-to-test button; override lever locks pushbutton and contacts in powered position |
| Pushbutton Color | Red (AC coil) |
| Expected Relay Life | Electrical 100,000 cycles; mechanical 10,000,000 cycles |
| Operate Time | 20 ms typical |
| Dielectric Strength | 1500 VAC RMS |
| Operating Temperature | -40 - 131 deg F (-40 - 55 deg C) |
| Relay Dimensions | 1.4 x 1.1 x 0.6 in. (36 x 28 x 15 mm) |
| Product Certification | UL | CE |
| Warranty | 5 years |
