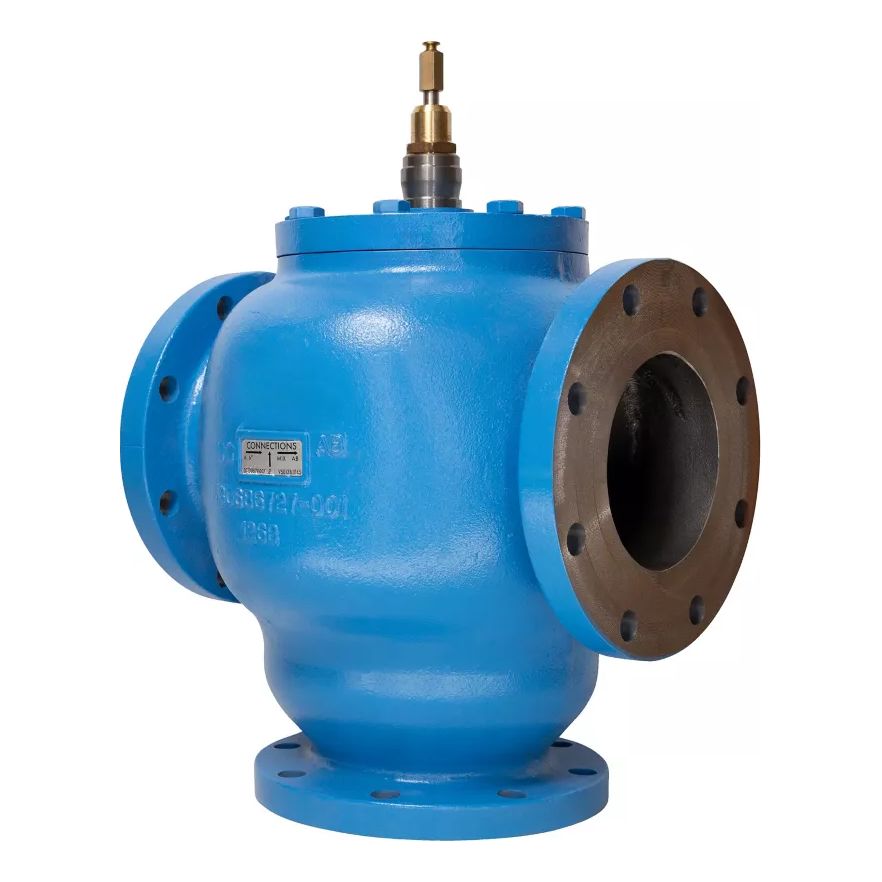

V5013B 3-Way Flanged Mixing Globe Valve, 6 in., Cv 360
Ships as a valve body only; the actuator and any linkage are ordered separately.
Rated for hot water, cold water, and glycol up to 50 percent.
Mixes two inlets into one outlet; mixing and diverting valves are not interchangeable.
Key Features
- Cv 360
- Linear flow, constant total flow
- 1-1/2 in. stem stroke
Product Specifications
| Manufacturer | Honeywell |
|---|---|
| Model | V5013B1045 |
| Product type | 3-way flanged mixing globe valve body |
| Size | 6 in. |
| Connection | Flanged, ANSI Class 125, flat-faced |
| Pattern | 3-way mixing |
| Cv | 360 |
| Action | Straight-through flow with stem down; stem up increases B to AB flow |
| Flow characteristic | Linear for each port, constant total flow |
| Close-off (Modutrol IV with Q5001 linkage) | 8 psi (320 lbf linkage) |
| Service | Hot water, cold water, and glycol up to 50 percent |
| Body | Cast iron |
| Plug | Bronze-skirted |
| Seat | Bronze, removable cage type |
| Stem | Stainless steel |
| Packing | Spring-loaded, self-adjusting Teflon cone |
| Max pressure differential | 50 psi two-position, 25 psi modulating, 20 psi quiet water service |
| Stem stroke | 1-1/2 in. (38 mm) |
| Bonnet | 1-7/8 in. (48 mm) |
| Flange bolt holes | 8 |
| Fits | Modutrol IV motor with Q5001B or Q5001D linkage; MP953 pneumatic actuator |
| Accessories | Repack kit 14003296-002; bonnet extension kit 14000501-001 for high temperature |
| Honeywell form | 60-2129-4 Rev. 2-98; 77-5316-1 |
