TB7980B ZonePRO Modulating Thermostat, 0-10V, 3 Outputs, 24 VAC
Controls a 0-10V or 2-10V modulating damper or valve actuator for zoned hydronic or pressure-dependent VAV systems.
Adds two heating outputs for duct reheat and auxiliary heat: a triac or analog Output 2 and a triac or contact Output 3.
Takes a remote room, return, or supply sensor, a changeover contact, and a night setback contact.
Runs on 24 VAC.
Key Features
- 0-10V or 2-10V analog output
- 2 additional heating outputs
- Setpoint 50-95 deg F
- PIA control
- Night setback input
Product Specifications

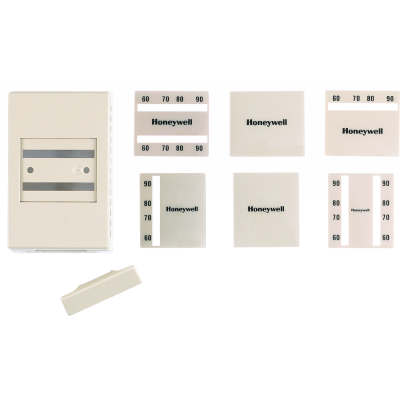

| Manufacturer | Honeywell |
|---|---|
| Model | TB7980B1005 |
| Product type | ZonePRO digital thermostat, modulating control, 3 outputs |
| Outputs | 3: Output 1 plus Output 2 and Output 3 |
| Output 1 | 0-10V or 2-10V analog, heat or cool; 10k ohm minimum (SCR) or 45 mA max (SSR); minimum opening 0-50% |
| Output 2 | Heating only: 24 VAC pulsed triac (1 s, 10 min direct or reverse, or 15 min relay cycle), 0.5A max; or 0-10V pulsed, 0-10V analog, or 2-10V analog (SW6 selects triac or analog) |
| Output 3 | Heating only: 24 VAC pulsed triac (1 s, 10 min direct or reverse, or 15 min relay cycle), 0.5A max; or NO contact closing at a set Output 1 percentage |
| Applications | Internal sensor, remote room sensor, return air, supply air, automatic changeover, or limited cooling |
| Inputs | External sensor (50014156-002 room, 50014157-001 duct, 32004800-001 bare thermistor, T7770A3002); mode changeover NO contact; night setback NO contact |
| Setpoint | 50-95 deg F (10-35 deg C); minimum and maximum limits adjustable |
| Temperature display | 32-140 deg F (0-60 deg C), 1 deg F resolution; deg F or deg C switch |
| Control | Proportional integral adaptive (PIA); mode hysteresis 4 deg F; automatic changeover deadband 9 deg F |
| Night setback | 2-18 deg F (1-9 deg C) offset; 2-hour override |
| Supply power | 24 VAC, 25 mA |
| Operating temperature | 32-140 deg F (0-60 deg C) |
| Storage temperature | -4 to 122 deg F (-20 to 50 deg C) |
| Humidity | 0-95% non-condensing |
| Wiring | 18 AWG (1 mm2) |
| Mounting | Drywall, single-gang 2 x 4 in. box, or double-gang box with mounting plate |
| Dimensions | 2.7 x 4.6 x 1.0 in. (69 x 118 x 27 mm) |
| Compatible actuators | VC6930, VC6934, VC6936, VC7930, VC7934, VC7936, ML6984, ML7984, ML6410, ML7410, ML6161B2024, MN6105A1011, ML7161A2008, MN7505A2001 |
| Accessories | R841 electromechanical relay |
| Honeywell form | 62-0238 (TB6980/TB7980 Installation and User Guide, 07/2012) |
