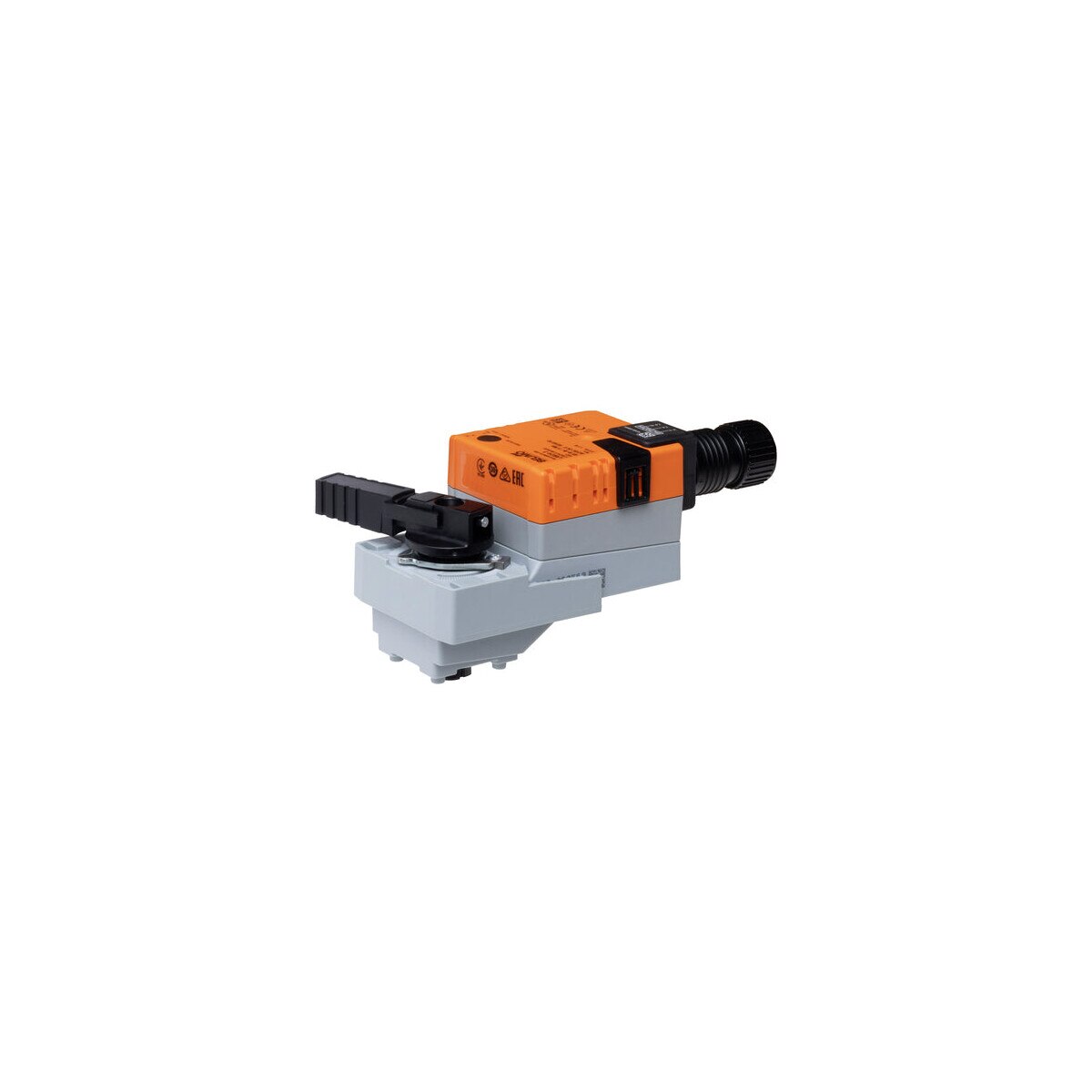

LRB120-3 Non-Spring Return Valve Actuator, 100-240 VAC, Floating
Fits Belimo characterized control valves 1/2 to 1-1/4 in. and ball valves 1/2 to 1 in., per the valve datasheets. On/off or floating control. Holds position on power loss.
Product Specifications
| Manufacturer | Belimo |
|---|---|
| Model | LRB1203 (LRB120-3) |
| Nominal voltage | AC 100 to 240 V |
| Nominal voltage frequency | 50/60 Hz |
| Nominal voltage range | AC 85 to 265 V |
| Power consumption in operation | 2W |
| Power consumption in rest position | 0.5 W |
| Transformer sizing | 4 VA |
| Overload Protection | electronic throughout 0 to 95 deg rotation |
| Electrical Protection | actuators are double insulated |
| Direction of motion motor | selectable with switch 0/1 |
| Manual override | external push button |
| Angle of rotation | 90 deg |
| Angle of rotation note | adjustable with mechanical stop |
| Running time (motor) | 90 s / 90 deg |
| Sound power level motor | 35 dB(A) |
| Position indication | Mechanical, pluggable |
| Power source UL | Class 2 Supply |
| Degree of protection NEMA/UL | NEMA 2 |
| Housing | UL Enclosure Type 2 |
| Agency Listing | cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02 CE acc. to 2014/30/EU and 2014/35/EU |
| Quality Standard | ISO 9001 |
| UL 2043 Compliant | Suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC |
| Ambient humidity | Max. 95% RH, non-condensing |
| Ambient temperature | -22 to 122 deg F (-30 to 50 deg C) |
| Storage temperature | -40 to 176 deg F (-40 to 80 deg C) |
| Servicing | maintenance-free |
| Weight | 1.0 lb (0.47 kg) |
| Housing material | Galvanized steel and plastic housing |
| AC 230 V, on/off | AC 230 V, 3-point |
