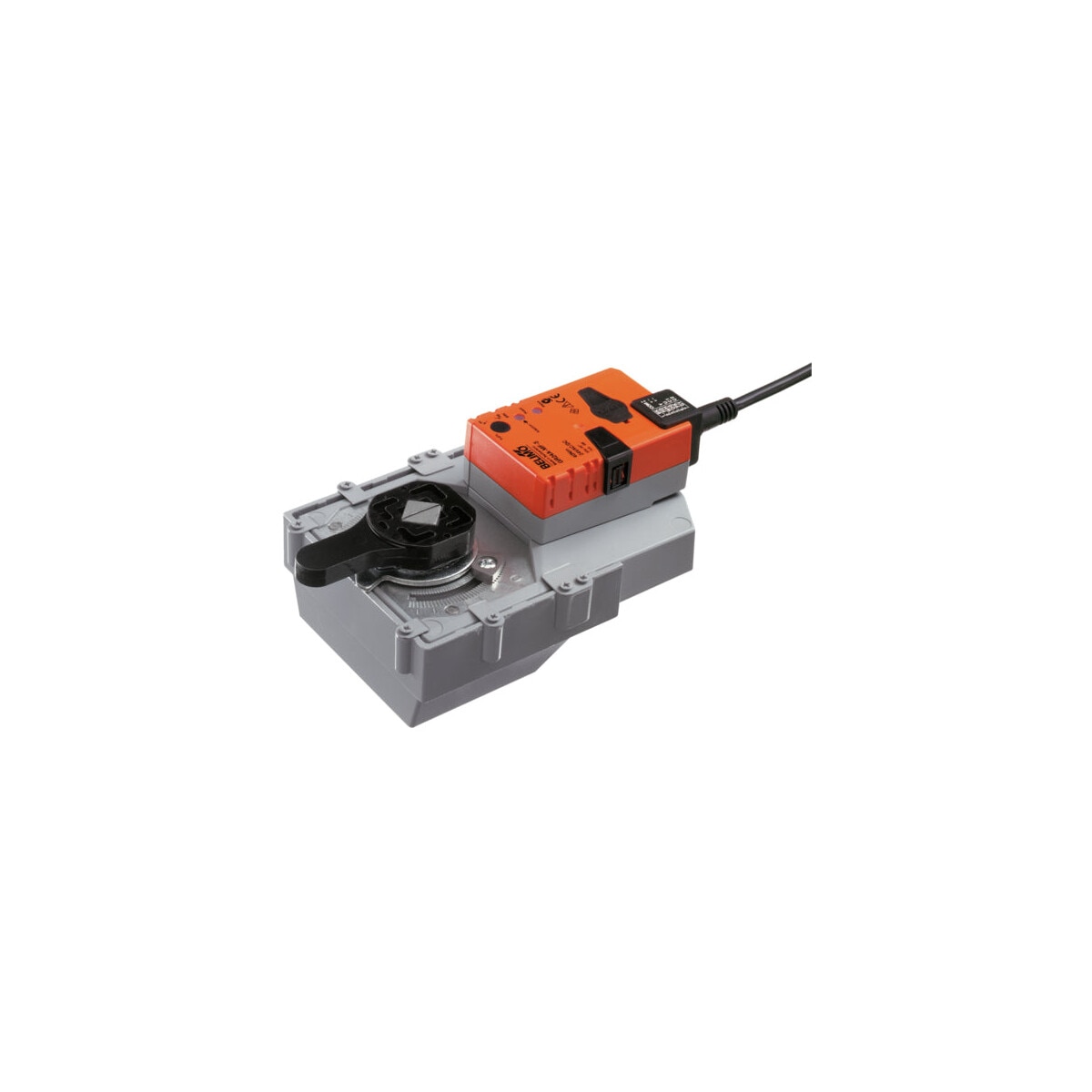

ARQX24-1 Non-Spring Return CCV Actuator, 24 VAC/DC, On/Off
Fits Belimo 2-way characterized control valves 1-1/2 to 3 in. and 3-way 1-1/4 to 2 in.
Takes two-position control and holds position on power loss.
Key Features
- Running Time (Motor): 10 s / 90 deg
- Running time motor variable: 10 or 15 s
Product Specifications
| Manufacturer | Belimo |
|---|---|
| Model | ARQX241 (ARQX24-1) |
| Nominal voltage | AC/DC 24 V |
| Nominal voltage frequency | 50/60 Hz |
| Nominal voltage range | AC 19.2 to 28.8 V / DC 21.6 to 28.8 V |
| Power consumption in operation | 15 W |
| Power consumption in rest position | 1.5 W |
| Transformer sizing | 26 VA |
| Overload Protection | electronic throughout 0 to 95 deg rotation |
| Control | On/Off |
| Direction of motion motor | selectable with switch 0/1 |
| Manual override | external push button |
| Angle of rotation | 90 deg |
| Angle of rotation note | adjustable with mechanical stop |
| Running Time (Motor) | 10 s / 90 deg |
| Running time motor variable | 10 or 15 s |
| Sound power level motor | 52 dB(A) |
| Position indication | Mechanical, pluggable |
| Power source UL | Class 2 Supply |
| Degree of protection NEMA/UL | NEMA 2 |
| Housing | UL Enclosure Type 2 |
| Agency Listing | cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU |
| Quality Standard | ISO 9001 |
| UL 2043 Compliant | Suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC |
| Ambient humidity | Max. 95% RH, non-condensing |
| Ambient temperature | -22 to 122 deg F (-30 to 50 deg C) |
| Storage temperature | -40 to 176 deg F (-40 to 80 deg C) |
| Servicing | maintenance-free |
| Weight | 3.1 lb (1.4 kg) |
| Housing material | Galvanized steel and plastic housing |
| Wire colors | 1 = black, 2 = red, 3 = white |
| Warranty | 5 years |
